Raptor PowerPUSH shredders are designed for all types of thermoplastics and where higher capacities are required.
Raptor PowerPUSH shredders come in 2 widths, 800 and 1350 mm.
PowerPUSH allows you to fully control the process. The hydraulically controlled pusher can be optimized with different "recipes" through the interactive control system depending on the material and desired output.
3 rotor variants – film/foil, lump, bulk material.
Shredders
Raptor PowerPUSH
-
Screens if needed
- The Raptor shredders run fine without screens, but screens with different hole sizes are available. As in Rapid’s large granulators, the screens are split in two to ease handling. The turnable screens are unbolted and unwelded making them very easy to remove when cleaning and servicing.
-
Heavy duty transmission
- The heavy duty design of the gear box makes it reliable, energy efficient and at the same time quiet. It’s belt driven for efficient operation.
-
MCT – mineral composite filled base for reduced vibrations
- The Raptor-Series’ base can be made of a special mineral composite material to give extra stability, reducing vibrations even in the toughest applications.
Raptor PowerPUSH shredders are designed for all types of thermoplastics and where higher capacities are required.
Raptor PowerPUSH shredders come in 2 widths, 800 and 1350 mm.
PowerPUSH allows you to fully control the process. The hydraulically controlled pusher can be optimized with different "recipes" through the interactive control system depending on the material and desired output.
3 rotor variants – film/foil, lump, bulk material.

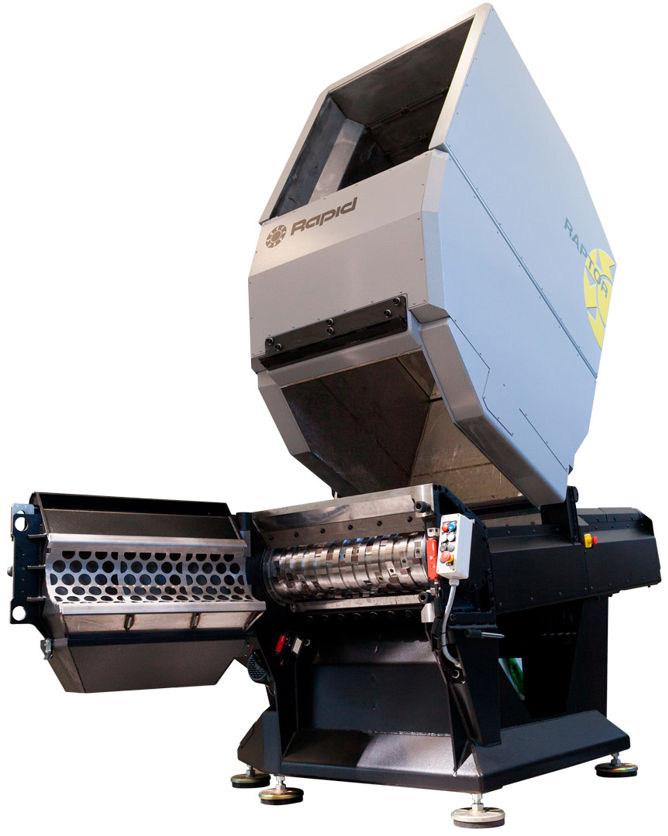

Open-Hearted Design
Offers total access to the interior of the shredder, including granule box and screen. This provides unmatched access to both rotating and fixed blades for service and maintenance.
Allows visibly clean inspection with easy and complete view of cleaning surfaces to ensure no residual or hidden material thereby preventing contamination at color changes.
Pusher System
PowerPUSH – hydraulically driven pusher for tougher applications and/or higher capacity requirements. The hydraulic pusher design provides the opportunity to control the pusher's stroke length. This gives you the opportunity to optimize the shredder with unique recipes for different materials/products to maximize shredder efficiency and output.
Raptor Industry 4.0
All Raptors come with a programmable PLC-control that enables monitoring and remote communication. The machine has a built-in WiFi supporting real time tracking of the recycling process, energy usage, warning messages about possible problems and much more.
"Recipes" can be changed and created for each recycled material to optimize for capacity and energy usage in line with your requirements.
Specifications
| Model | POWERPUSH 800 | POWERPUSH 1350 |
| Rotor | ||
| Rotor diameter, (mm) | 280 | 280 |
| Rotating knives | 23 | 39 |
| Cutterhouse | ||
| Cutterhouse dimensions (mm) | 800x780 | 1350x780 |
| Fixed knives | 3 | 5 |
| Transmission | ||
| Motor, standard (kW) | 11 | 22 |
| Optional motor alternatives (kW) | 15, 18.5, 22, 30, 37, 45 | 15, 18.5, 22, 30, 37, 45 |
| Screen | Optional | Optional |
| Screen, hole diam., (mm) | 16-75 | 16-75 |
| Hopper | ||
| Standard hopper inlet, (mm) | 800x1490 | 1350x1490 |
| Weight, (kg) | 4200 | 5000 |
| Model | POWERPUSH 800 | POWERPUSH 1350 |
| Rotor | ||
| Rotor diameter, (inch) | 11" | 11" |
| Rotating knives | 23 | 39 |
| Rotor speed (rpm) | 60 | 60 |
| Cutterhouse | ||
| Cutterhouse dimensions (inch) | 31.5"x30.5" | 53"x30.5" |
| Fixed knives | 3 | 5 |
| Transmission | ||
| Motor, standard (Hp) | 15 | 30 |
| Optional motor alternatives (Hp) | 20, 25, 30, 40, 50, 60 | 20, 25, 40, 50, 60 |
| Screen | Optional | Optional |
| Screen, hole diam., (inch) | 5/8"-3 | 5/8"-3 |
| Hopper | ||
| Standard hopper inlet, (inch) | 31.5"x58.5" | 31.5"x58.5" |
| Weight, (lbs) | 9300 | 11000 |
Media & Video
Dimensional drawing/layout
| Model | POWERPUSH 800 | POWERPUSH 1350 |
| A | 800 | 1350 |
| B | 500 | 1050 |
| C | 1710 | 2260 |
| D | 620 | 1170 |
| E | 1070 | 1620 |
| Model | POWERPUSH 800 | POWERPUSH 1350 |
| A | 31.5" | 53" |
| B | 20" | 42" |
| C | 67" | 89" |
| D | 24.5" | 46" |
| E | 42" | 64" |
